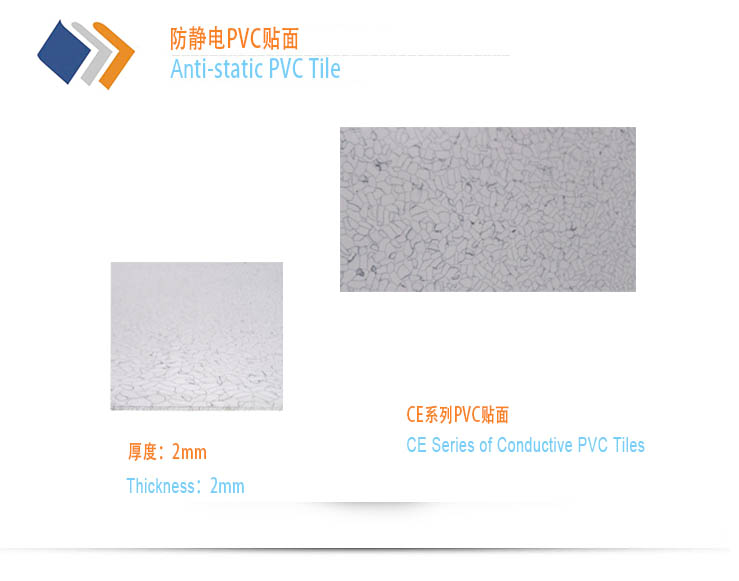

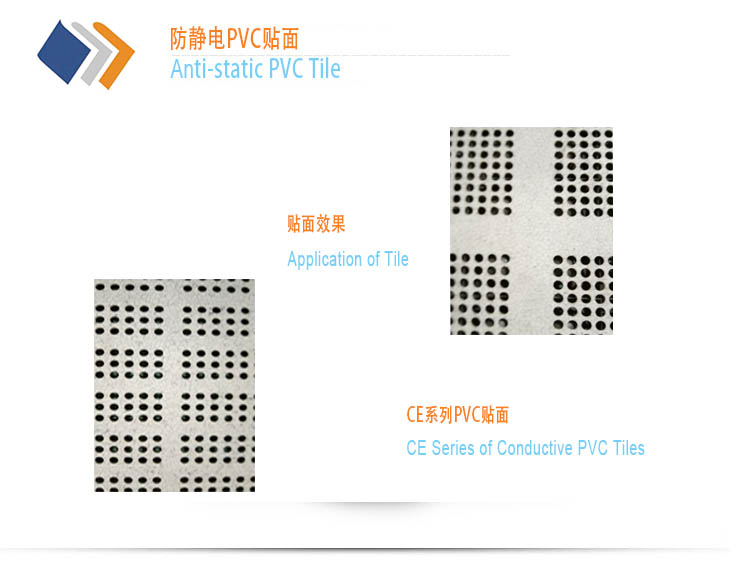

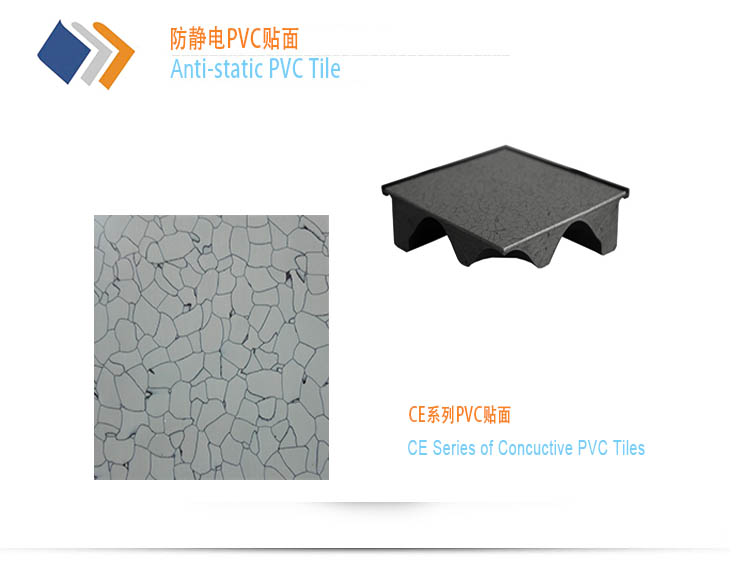

CE Series of Conductive PVC Tiles
|
MAXFLOR CE-01 |
MAXFLOR CE-04 |
MAXFLOR CE-06 |
|
MAXFLOR CE-901 |
MAXFLOR CE-903 |
MAXFLOR CE-909 |
|
MAXFLOR CE-1101 |
MAXFLOR CE-1103 |
MAXFLOR CE-9022 |
| Item |
Technical Data |
|
|
Thickness EN428 |
2.0mm 2.5mm 3.0mm |
|
|
Size EN426 |
600*600mm | 610*610mm |
|
Weight EN430 |
2.0mm: 3.8kg/m2
2.5mm: 4.8kg/m2 3.0mm: 5.8kg/m2 |
2.0mm: 3.8kg/m2 2.5mm: 4.8kg/m2 3.0mm: 5.8kg/m2 |
|
Electric properties DIN51953、ASTM F-1550 or NFPA99 |
Conductive Tile | Dissipative Tile |
|
2.5×104 ～106 ohm |
106～109 ohm |
|
|
Decay Time
SJ/T10694-2006（lVl〈100V） |
EQUAL 0.4S |
EQUAL 0.4S |
|
Charge Voltage SJ/T10694-2006(|V|〈100V） |
EQUAL 70 | AEQUAL 70 |
|
Fire Resistant Grade DIN4102 |
B1 |
B1 |
|
Combustion Properties SJ/T11236-2001（＜10S,reach FV-0 level） |
EQUAL 0．35s|FV-0 |
EQUAL 0．35s|FV-0 |
|
Amount of Anti-wear SJ/T11236-2001(≤0.020g/cm2,100r) |
EQUAL 0.014 | EQUAL 0.014 |
|
Anti-wear properties EN660pt2 |
ITEN-T〈2.0mm3 | ITEN-T〈2.0mm3 |
|
Wheel Pressure EN425 |
No influence | No influence |
|
Residual concavity EN433、DIN51955 |
0.03mm(2.0mm) 0.035mm(2.5mm) 0.04mm(3.0mm) |
0.03mm(2.0mm) 0.035mm(2.5mm) 0.04mm(3.0mm) |
|
Dimensional Stability EN433 |
《0.10% | 《0.10% |
|
Color fastness IDO105BO2 |
At least 6 | At least 6 |
|
Resistance to chemicals DIN423、DIN51958 |
Offers excellent resistance ask for special sheet | Offers excellent resistance ask for special sheet |
|
Impact sound absorption VLI、ISO104、ISO717 |
Approx 2dB | Approx 2dB |
| Standard for health care facilities NFPA99 | Confirms to the requirement of NFPA99 in effect at the tine of installation | |
